Pontoons

Name Barge

ENI number

Length O.A.

Beam Moulded

Deck load

Depth moulded

Internal ballast system

Bow Thruster

Roroponton 1

04606930

80 m

11.38 m

6 ton/m2

3 m

2 x 50 m3/hr

Verhaar-Omega – 360° - 400 pk DAF

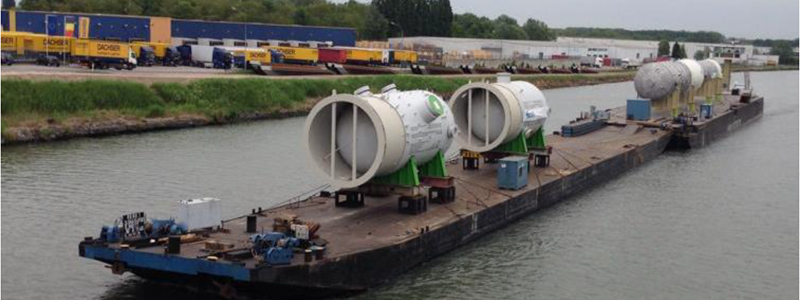

Roroponton 1

Flat top barge.

Download technical plan

ENI number	04606930
Length O.A.	80 m
Beam Moulded	11.38 m
Deck load	6 ton/m2
Depth moulded	3 m
Internal ballast system	2 x 50 m3/hr
Bow Thruster	Verhaar-Omega – 360° - 400 pk DAF

Roroponton 2

06004167

66.95 m

10 m

8 ton/m2

2.8 m

300 ton/hr

Van Wijk – 360° - 295 kW DAF

Roroponton 2

Flat top barge – Equipped with a hydraulic RoRo Ramp. Deck consists of azobe wood.

Download technical plan

ENI number	06004167
Length O.A.	66.95 m
Beam Moulded	10 m
Deck load	8 ton/m2
Depth moulded	2.8 m
Internal ballast system	300 ton/hr
Bow Thruster	Van Wijk – 360° - 295 kW DAF

Roroponton 4

06105387

90 m

22.12 m

10 ton/m2

5.3 m

2 x 500 ton/hr

Veth 4 channels 725 hp

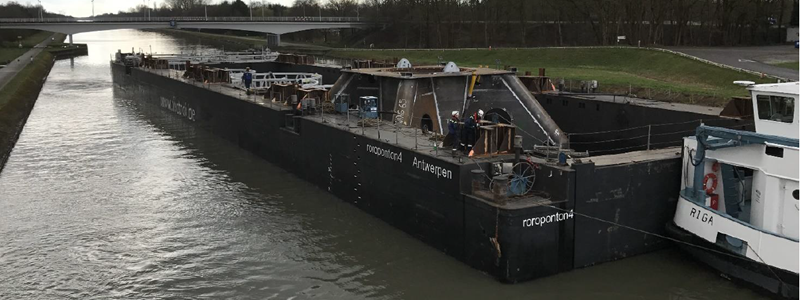

Roroponton 4

Drive in barge.

Download technical plan

ENI number	06105387
Length O.A.	90 m
Beam Moulded	22.12 m
Deck load	10 ton/m2
Depth moulded	5.3 m
Internal ballast system	2 x 500 ton/hr
Bow Thruster	Veth 4 channels 725 hp

Roroponton 5

06105388

69 m

15.6 m

16 ton/m2

4.5 m

2 x 300 ton/hr

Veth 4 channels 625 hp

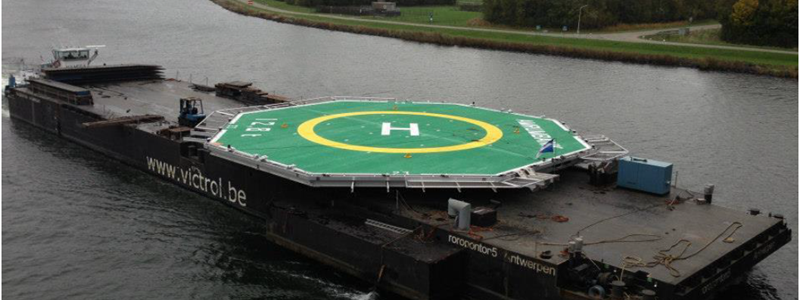

Roroponton 5

RoRo Flat Top Pontoon

Download technical plan

ENI number	06105388
Length O.A.	69 m
Beam Moulded	15.6 m
Deck load	16 ton/m2
Depth moulded	4.5 m
Internal ballast system	2 x 300 ton/hr
Bow Thruster	Veth 4 channels 625 hp

Roroponton 4/5

06105387

90 m

22.12 m

16 ton/m2

5.3 m

2 x 500 ton/hr

Veth 4 channels 725 hp

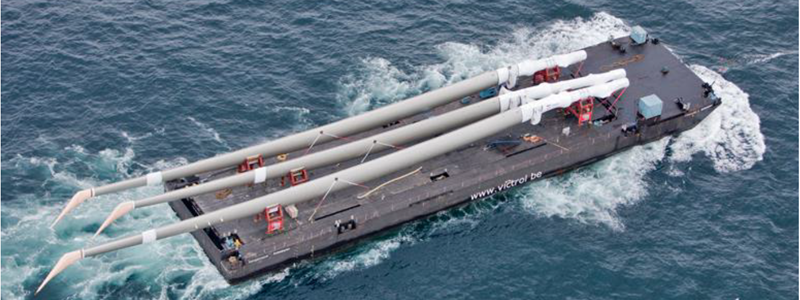

Roroponton 4/5

Flat top barge - combination of roroponton 5 in roroponton 4. For an example of the Roropontoon 5 in Roropontoon 4 configuration see: https://www.youtube.com/watch?v=byB7o3y3Gc4

Download technical plan

ENI number	06105387
Length O.A.	90 m
Beam Moulded	22.12 m
Deck load	16 ton/m2
Depth moulded	5.3 m
Internal ballast system	2 x 500 ton/hr
Bow Thruster	Veth 4 channels 725 hp
